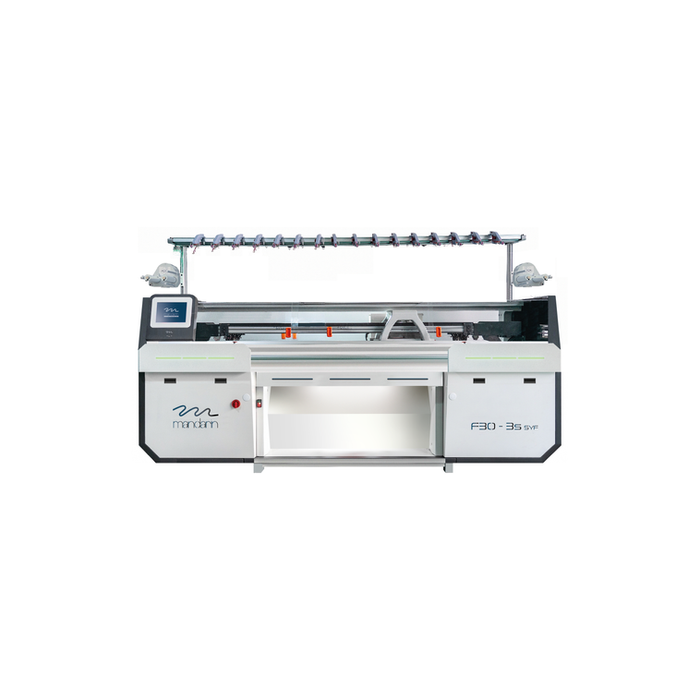

Long - Series | Flat Knitting Machines

F30-103 SYF | F30 - 104 SYF | F30-103 | F30-104 | F30-204 | F30-206

Long - Series
The Long Series represents the long machine models dedicated to classic knitwear, offering 80" and 100" models and complete with all the technical specifications necessary to satisfy every type of stylistic need.

SYSTEMS

3

YARN FEEDERS

x 16 Standard

INCHES

45", 52", 56"

GAUGES

5G, 6G, 7G, 8G, 9G, 10G, 12G, 14G, 15G, 16G, 18G and 5.7G, 6.2G, 7.2G multi-gauge.

Description

Automatic flat-knitting machine equipped with a single carriage with three systems, which are able to transfer the needle individually or simultaneously; they can transfer the needle when the other system knits. The machine control interface, with LCD display, facilitates interaction with the systems integrated into the machine by being easy to understand. The inversion of the cams is managed by motors, replacing the traditional mechanical management in each individual system, reducing the distance and improving precision. The new Smart design of the carriage and the motorized management of the cams significantly reduce production times. Each gradation engine is equipped with the "dynamic gradation" function which allows you to create fabrics with more density on the same row, increasing the stylistic possibilities.

SYF Technology

SYF Technology (Smart Yarn Feeders) replaces normal yarn feedres with an innovative belt transport system. Each yarn feeder is equipped with a forward belt and a return belt controlled by encoders to guarantee maximum precision in their positioning. This technology allows you to carry out complex processes that cannot be performed without it, furthermore the SYF technology eliminates empty runs of the carriage, optimizing production. The reduced dimensions of the carriage favor productivity, it is also equipped with an independent lighting system that allows you to control the systems' work.

MANDARIN PULL

The Mandarin draw is positioned 2 cm below the working space of the needles and is controlled by stepper motors.

SMART CARRIAGE

The dimensions of the carriage have been reduced in favour of reversal speed.

MOTORIZED FELLING

Sinkers equipped with stepper motor for each individual system.

TOUCHSCREEN LCD MONITOR

Machine control interface via 11" LCD touchscreen monitor.

CAN BUS ELECTRONICS

Mandarin machines have the latest generation integrated electronics.

DYNAMIC GRADATION

Grading with hyper-fast motors with a maximum range of 150 dots per inch.

MOTORIZED THREAD GUIDES

The Long Series is available with traditional yarn feeders or with SYF (Smart Yarn Feeders) motorized yarn feeders.

INDUSTRY 4.0

All Mandarin machines are integrated with 4.0 technology and its dedicated software KNITTING CLOUD PLATFORM.

SYF PLOT DEVICE

A system capable of carrying out woven processes even with motorized thread guides.

Technical details

Technical specifications

  • 7G, 8G, 9G, 10G, 12G, 14G, 15G, 16G and 5.7G, 6.2G, 7.2G multi-gauge. (18G, 20G up to 80")

  • 80", 100" (inches).

    MODELLO
    FRONTURA
    CAMPO DI LAVORO
    SPAZIO LIBERO
    CAMPO DI LAVORO
    F30-206 (3+3)
    100"
    41"
    18"
    41"
    F30-206 (3+3)
    80"
    31"
    18"
    31"
    F30-104 (2+2)
    100"
    44"
    12"
    44"
    F30-204 (2+2)
    80"
    34"
    12"
    34"

  • controlled by AC servo motor with 32 selectable speed settings, the maximum speed is 1.4m/s.

  • 2 wagons joined together to form 4 systems or in tandem 2+2 systems/2 wagons joined together to form 6 systems or in tandem 3+3 systems.

  • transfer, English jersey, looped, punched, inlay, jacquard, shaped mesh, hidden shaping, dropped mesh, flessage.

  • controlled by AC servo motor with displacement within 2 inches, with the function of fine adjustment.

  • the needle safety device moves horizontally.

  • It is equipped with an advanced counting system.

  • Each system is complete with transfer, work, inlet, out-of-work, producing with maximum efficiency.

  • controlled by stepper motor, 128 selectable density levels, adjustment supported by division technology: 0-650, so the length of the sheets is accurately controlled.

  • made by high-speed stepper motor. With the dynamic gradation in multiple addresses/tables, fabrics with multiple densities can be made in the same rank, enriching the work design.

  • controlled by stepper motor, adjustable for different meshes, allows for different shapes and jobs.

  • Main roller: Highly positioned rubberized rollers, controlled by stepper motor with self-adjusting speed and pressure. Programmable instructions, variable power with 32 levels regulated with subdivision: 0-100.

    Sub roller (*): programmable instructions, controlled by stepper motor, variable power draw with 32 levels regulated with subdivision: 0-100.

  • 2x8 thread guides on both sides of the 4 guides, movable to any position. The addition of the weft device reduces the number of effective thread guides.

  • the alarm is automatically activated in case of yarn breakage, rolling, yarn rising, cloth rewinding, end of work, counting error, shock stop, programming errors, safety lock.

  • - Display: Adopts 10.4 inch industrial touch screen LCD, graphic interface. Input is provided by USB or ethernet, the system internal memory is up to 2GB. - Monitoring menu: Each type of working parameter can be set in multiple languages; it can be changed even during the work in progress.

  • Knitting data can be uploaded, downloaded and shared via high-speed Ethernet.

  • Weft device (*): additional device with mechanical adjustment used for weft processes.

    SYF weft device (*): integrated device with electronic regulation used for wefted processes.
